- Metallic Material Control Switch
- Enclosure : 1G / 2G / 3G
- Unit Q'ty : Max. 3 Unit
- Install Type : Vertical / Horizontal Type
- Unit Type
PL | Pilot Lamp - Single |
DP | Pilot Lamp - Double |
PB | Push Button Switch - Single |
DB | Push Button Switch - Double |
PB4P | Push Button Switch – 4P |
SS | Selector S/W |
SS4P | Selector S/W – 4P |
EB | Emergency Button S/W |
EB4P | Emergency Button S/W - 4P |
AM | Ampere Meter |
RM | RPM Meter |
VM | Volt Meter |
TS | Tumbler Switch |
IB | Illuminated Push Button S/W |
VC | Volume S/W |
Unit | Rating | Description |
Push Button Series | Max. AC 250V, 6A | A Contact B Contact |
Pilot Lamp Series | Max. AC 250V, 20mA | LED Lamp |
Max. DC 110V, 20mA | ||
Selector Switch Series | Max. AC 630V, 10A Max. DC 110V, 5A | Max. 4 Pole |
Tumbler Switch Series | Max 250V, Max. 20A | - |
Illuminated Push Button Series | Max. AC 250V, 6A | A Contact B Contact |
Max. AC 250V, 20mA | ||
Max. DC 110V, 20mA | ||
VM Meter | Max. 600V | Volt Meter |
AM Meter | Max. 5A | Ampere Meter |
RPM Meter | Max. 20mA | RPM Meter |
Volume S/W | Max. 2W | Volume S/W |

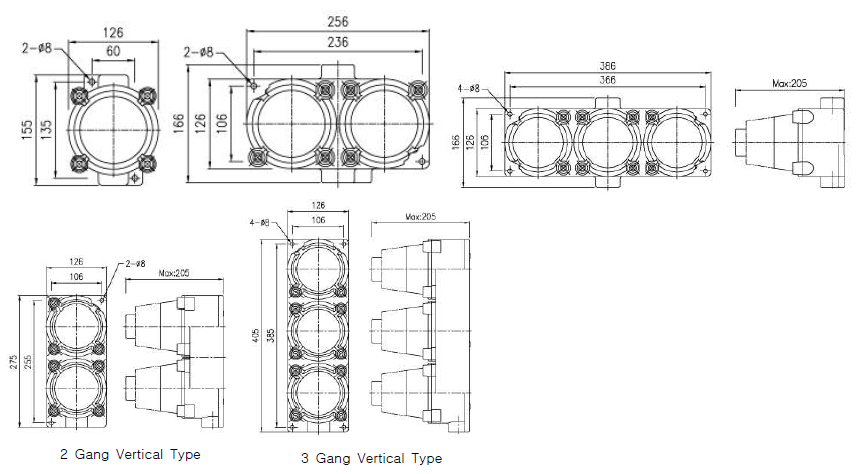

Enclosure | 1G | 2G | 3G |
W (mm) | 126 | 126 | 126 |
L (mm) | 155 | 294 | 424 |
