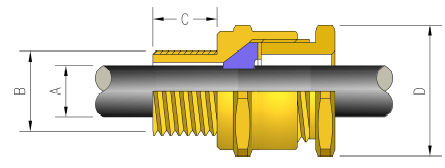

- Size : M20 ~ M90 / 1/2“ ~ 3”

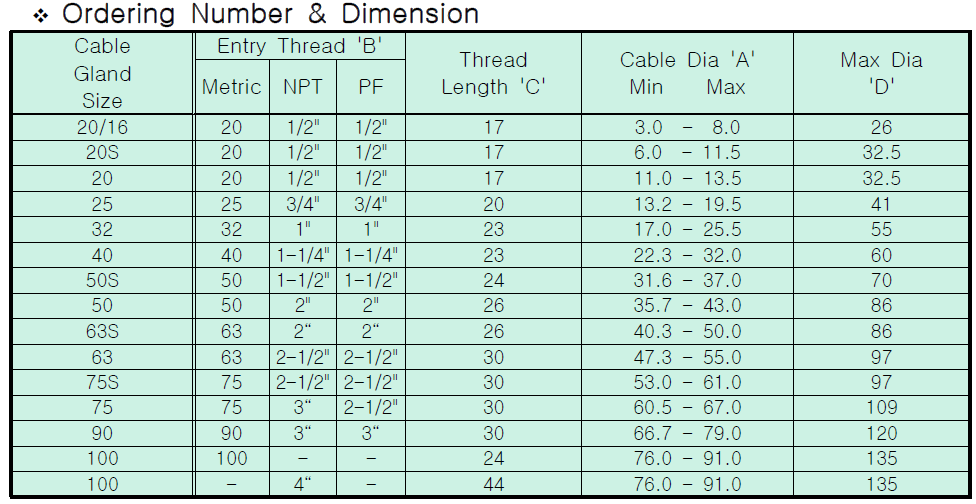

Catalog

No

'A'

'B'

Cable Dia 'C'

Min Max

'L'

Metric

NPT

PF

A2F 20/16

20

1/2"

17

4.0 - 8.0

26

A2F 20S

20

1/2"

17

6.0 - 11.5

32.5

A2F 20

20

1/2"

17

11.0 - 13.5

32.5

A2F 25

25

3/4"

20

13.2 - 19.5

41

A2F 32

32

1"

23

17.0 - 25.5

55

A2F 40

40

1-1/4"

23

22.3 - 32.0

60

A2F 50S

50

1-1/2"

24

31.6 - 37.0

70

A2F 50

50

2"

26

35.7 - 43.0

86

A2F 63S

63

2“

26

40.3 - 50.0

86

A2F 63

63

2-1/2"

30

47.3 - 55.0

97

A2F 75S

75

2-1/2"

30

53.0 - 61.0

97

A2F 75

75

3“

30

60.5 - 67.0

109

A2F 90

90

3“

30

66.7 - 79.0

120
