Description

- Adapter

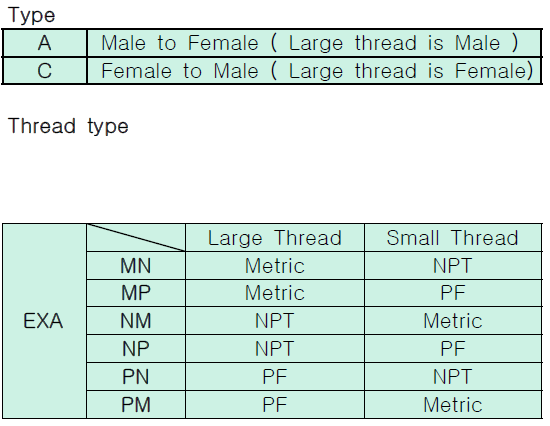

- Metric, NPT and PF thread type mutual conversion (including thread size conversion)

- Male to Female / Female to Male

Technical Data

- Size : M20 ~ M90 / 1/2“ ~ 4”

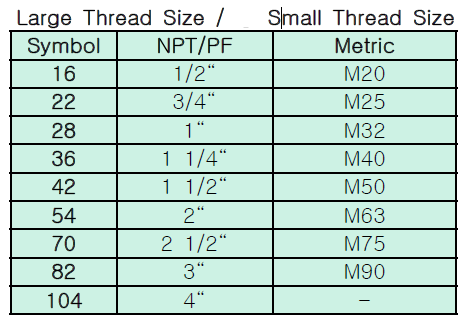

Dimension

Symbol	NPT / PF	Metric
16	½"	M20
22	¾"	M25
28	1"	M32
36	1¼"	M40
42	1½"	M50
54	2"	M63
70	2½"	M75
82	3"	M90
104	4"	-
