Control Switch

Control Switch Exp. GRP S/W

Control Switch

Model: EFCS

Exp. Grade: Ex db eb IIC T6 Gb
Ex tb IIIC T80℃ Db IP66

Certificate

Description

- GRP Material Control Component

- Enclosure : 100 / 200 / 300 / 600 / 1200 / 2800 / 5400

- Unit Q'ty : Max. 54 Unit

- Unit Type

PB	Push Button Switch - Single
DB	Push Button Switch - Double
PL	Pilot Lamp
IB	Illuminated Push Button Switch
EB	Emergency Push Button Switch
EK	Emergency Push Button Switch - Key Type
SS	Selector Switch
LS	Selector Switch - Large
TS	Tumbler Switch
AM	Ampere Meter

Technical Data

Unit	Rating	Description
Push Button Series	Max. AC 630V, 16A Max. DC 110V, 16A	A Contact B Contact
Pilot Lamp Series	Max. AC 250V, 20mA Max. DC 110V, 20mA	Yellow, Green, Red, White
Selector Switch Series	Max. AC 630V, 20A Max. DC 250V, 20A	Max. 4 Pole
Illuminated Push Button Series	Max. AC 250V, 16A Max. DC 110V, 16A	A Contact B Contact Yellow, Green, Red, White
Illuminated Push Button Series	Max. AC 250V, 20mA Max. DC 110V, 20mA	A Contact B Contact Yellow, Green, Red, White
AM Meter Series	Max. 5A	Ampere Meter

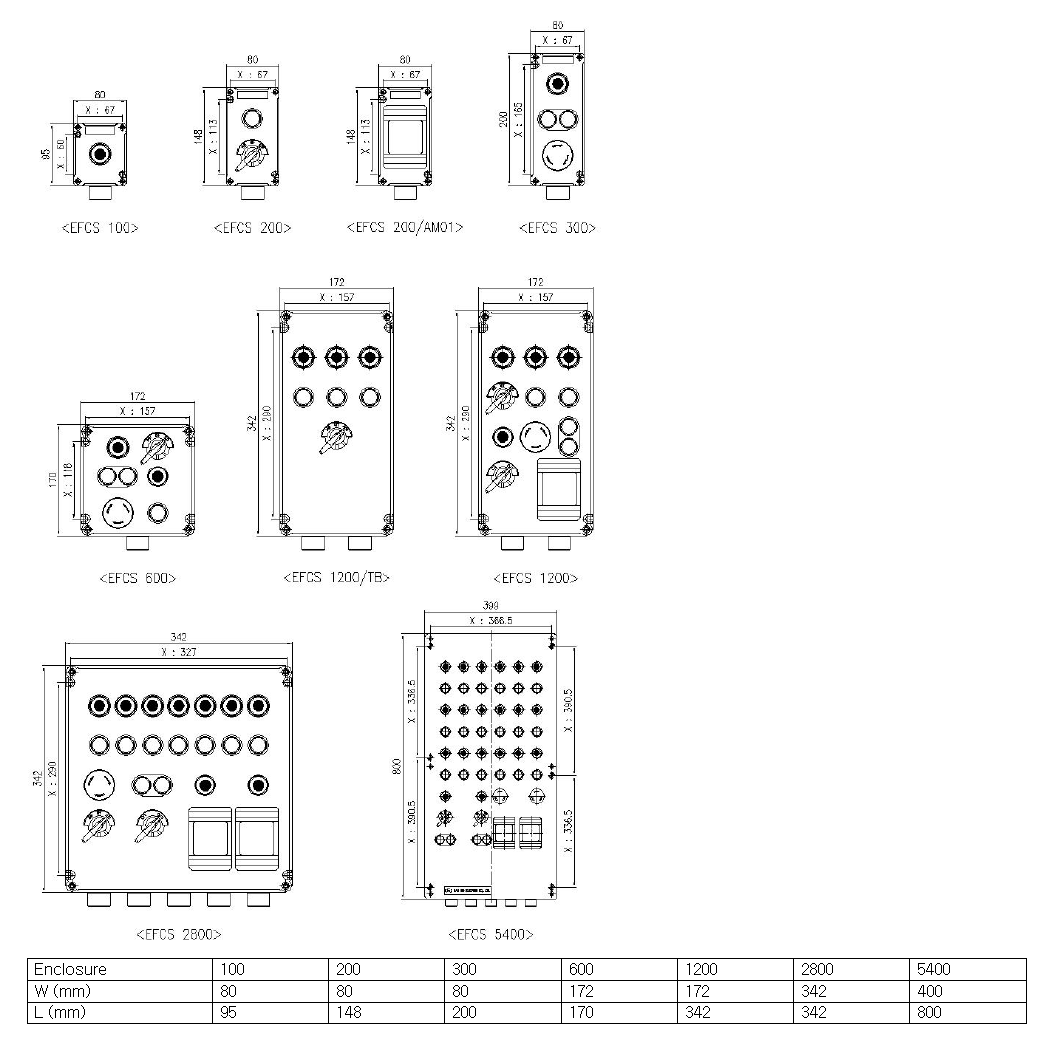

Dimension

LIST
