Panel Board

Panel Exp. Metallic Panel

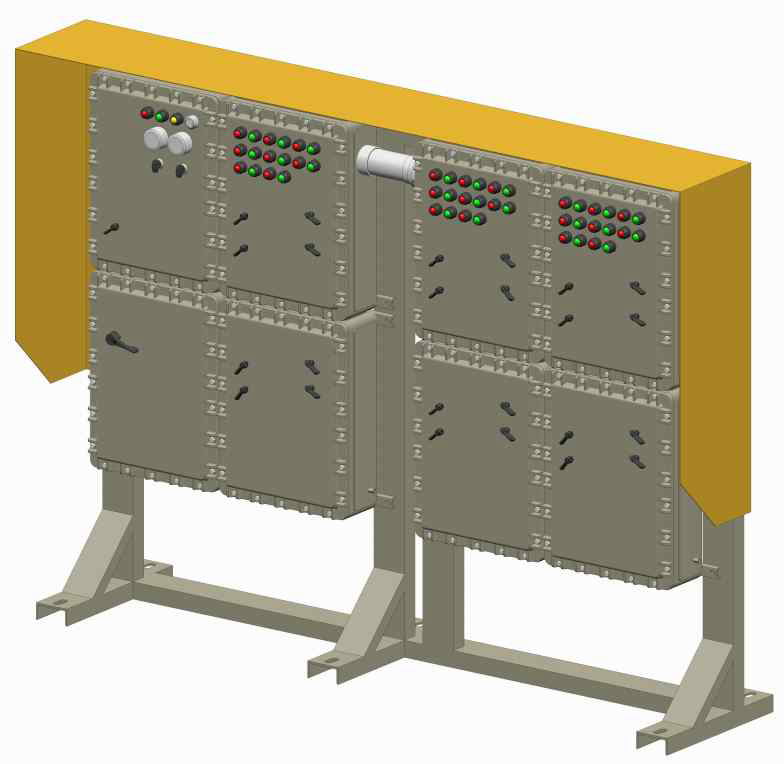

Panel Board

Model: ESDS 706

Exp. Grade: Ex db IIB+H2 T5 Gb
Ex tb IIIC T95℃ Db IP66

Certificate

Catalog Download

Description

- Metallic Material Panel Board

Technical Data

- Max. 225A Circuit Breaker

- Max. 38 Circuit Breaker

- Each Enclosure Combination.

- Component : Pilot Lamp / Push Button SW / Selector SW / V-Meter / A-Meter / Indicator

- Body & Cover : Cast aluminium alloy

- Channel : Hot-Dip Galvanized steel

- Standard Color Finish : MUNSELL No. 7.5BG 6/1.5

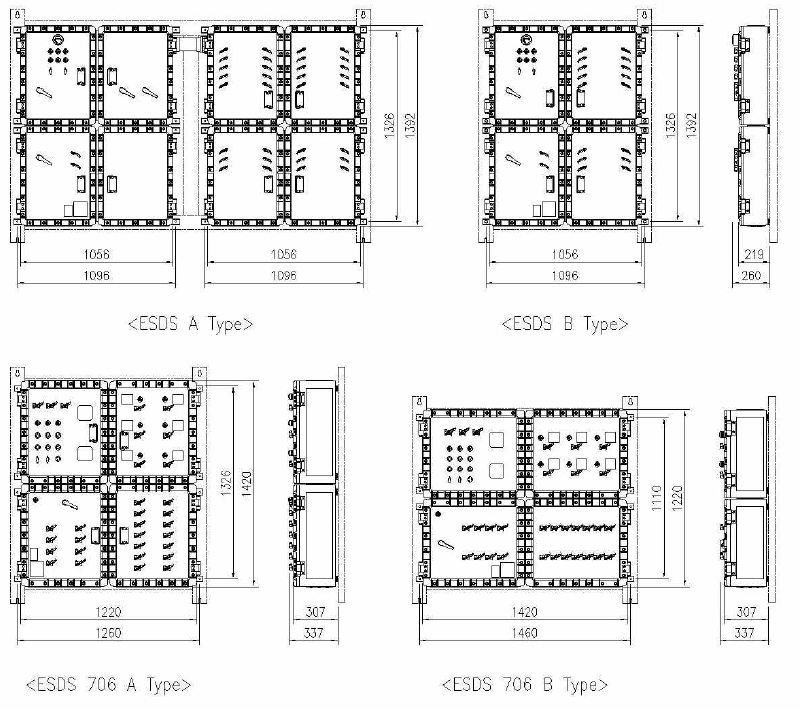

Dimension

LIST
