Plug & Receptacle
Plug & Receptacle GRP Plug & Receptacle

Plug & Receptacle

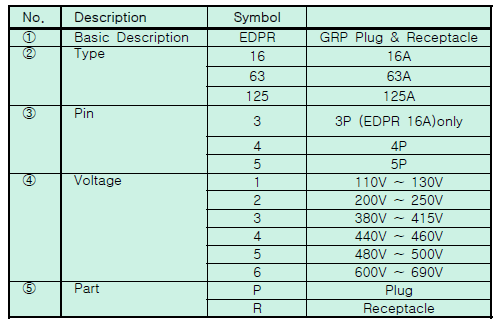

Model
EDPR
Exp. Grade
Ex db eb IIC T6/T5 Gb
Ex tb IIIC T80℃/T95℃ Db IP66
Certificate

Description

- GRP Material Plug & Receptacle

Technical Data

- Max. 690V / Max. 125A

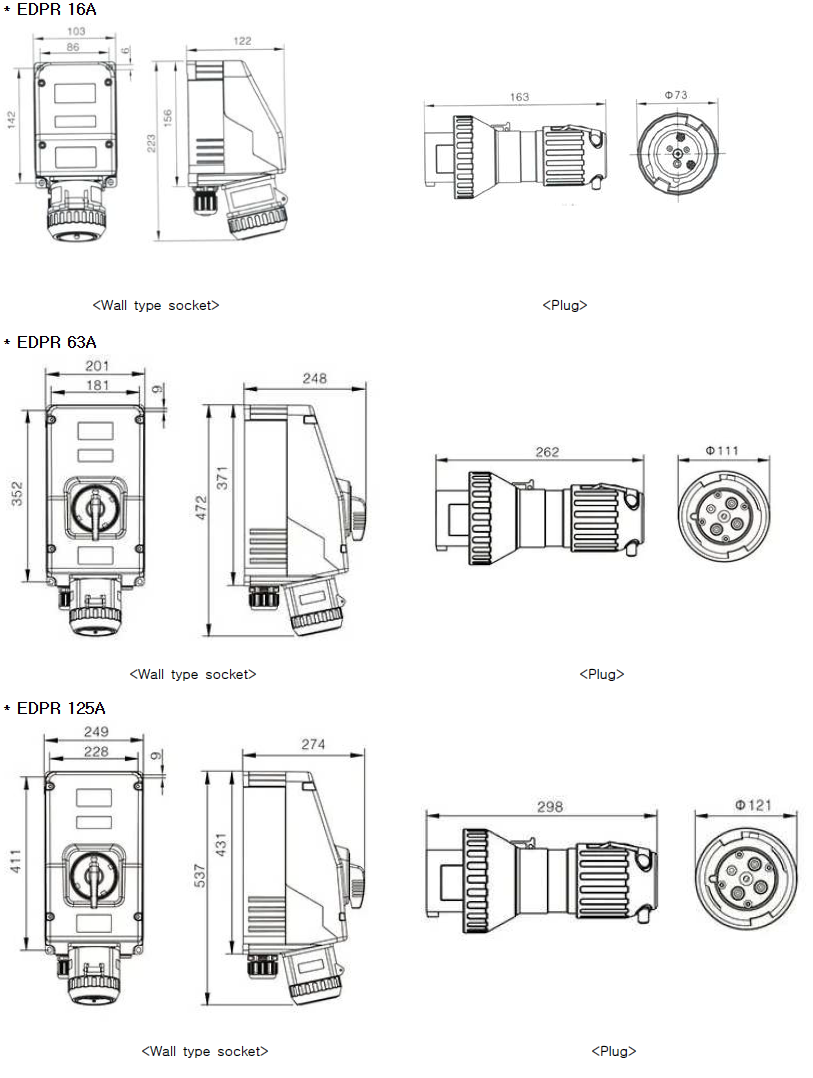

Dimension


Dimen.

16A

32A

63A

125A

A

335

650

650

735

B

195

360

360

420

C

123

235

235

265
