Terminal Box

Junction / Terminal Box Metallic Terminal Box

Terminal Box

Model: EBGC

Exp. Grade: Ex db IIB/IIB+H2 T6/T5 Gb
Ex tb IIIC T80℃/T95℃ Db IP66

Certificate

Catalog Download

Description

- Metallic Material Terminal Box

Technical Data

- Max. 690V

- Body & Cover : Cast aluminium alloy

- Standard Color Finish : MUNSELL No. 7.5BG 6/1.5

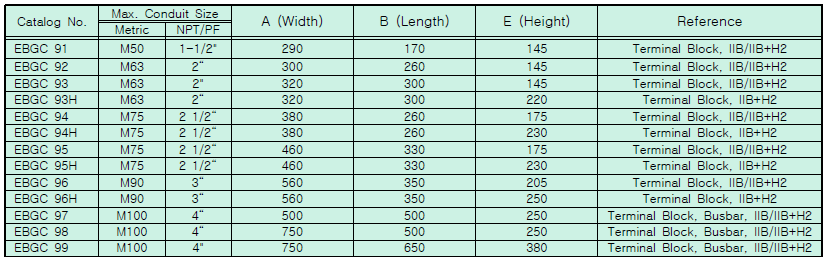

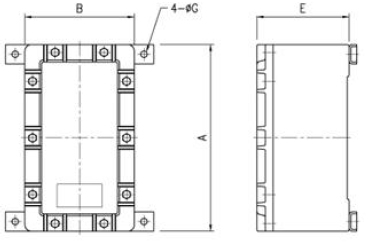

Dimension

LIST
