Non-Armoured Cable Gland (EUG)

Cable Gland Non-Armoured Cable Gland

Non-Armoured Cable Gland (EUG)

Model: EUG

Exp. Grade: Ex d IIC

Certificate

Catalog Download

Description

- Non-Armoured Cable Gland

Technical Data

-Materials : Brass, Ni-Brass, Stainless Steel

- Size : M20 ~ M50 / 1/2“ ~ 1-1/2"

Model	Thread		Cable Dia.
Model	Metric	NPT/PF	Min. Max.
EUG 16	20	1/2"	7 - 11
EUG 22	25	3/4"	10 - 15
EUG 28	32	1"	14 - 20
EUG 36	40	1-1/4"	18 - 26
EUG 42	50	1-1/2"	23 - 31

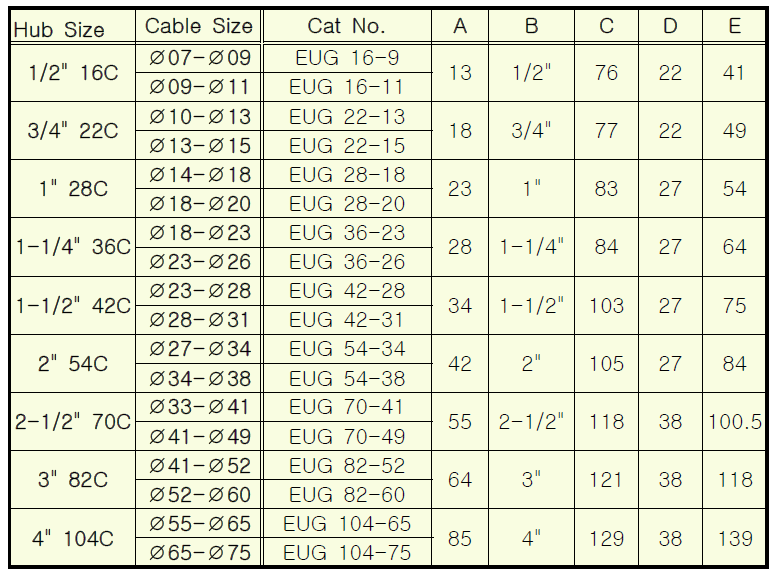

Dimension
